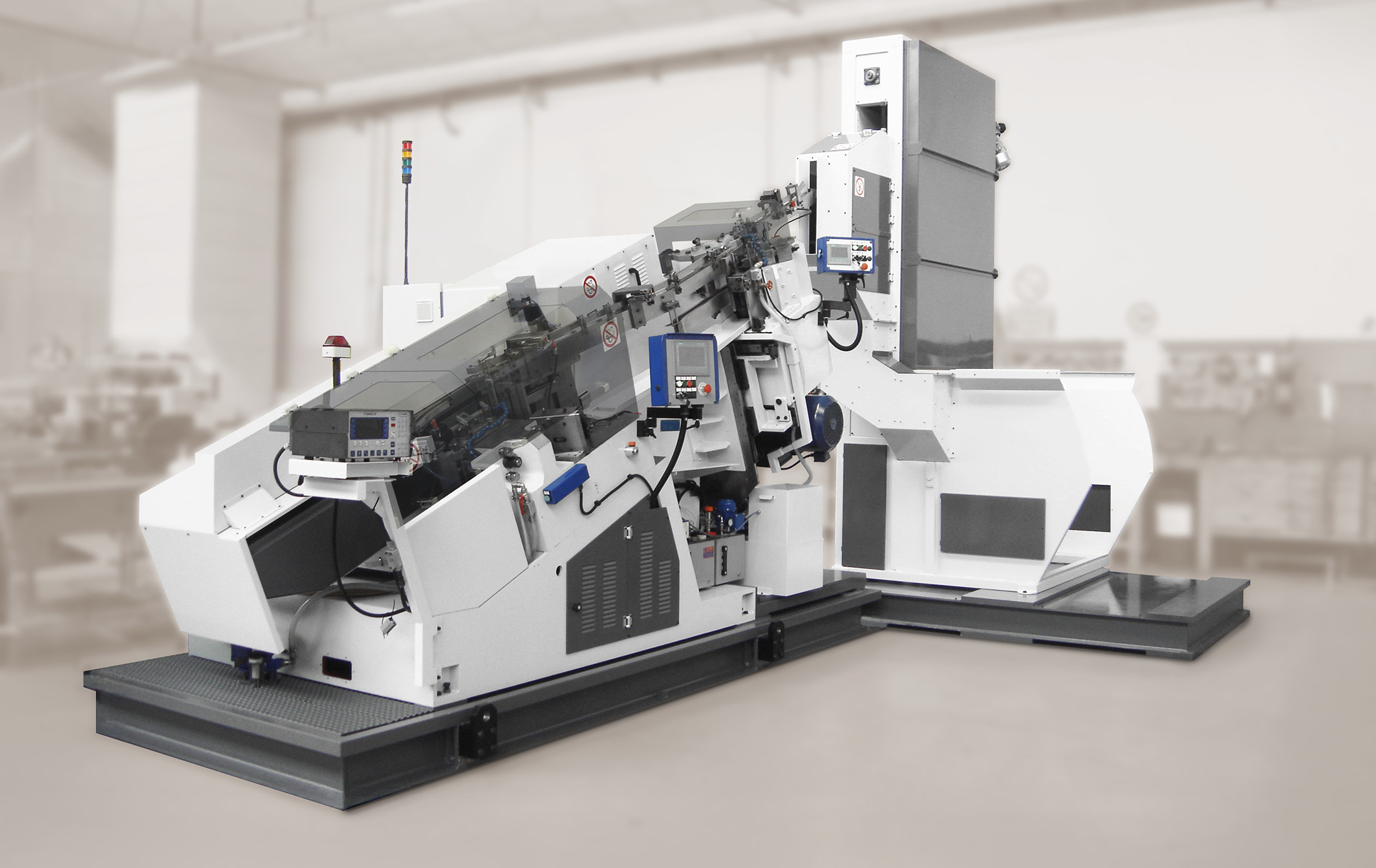

RP16S + RS12 + Loading Elevator

RP16S + RS12 + Loading Elevator

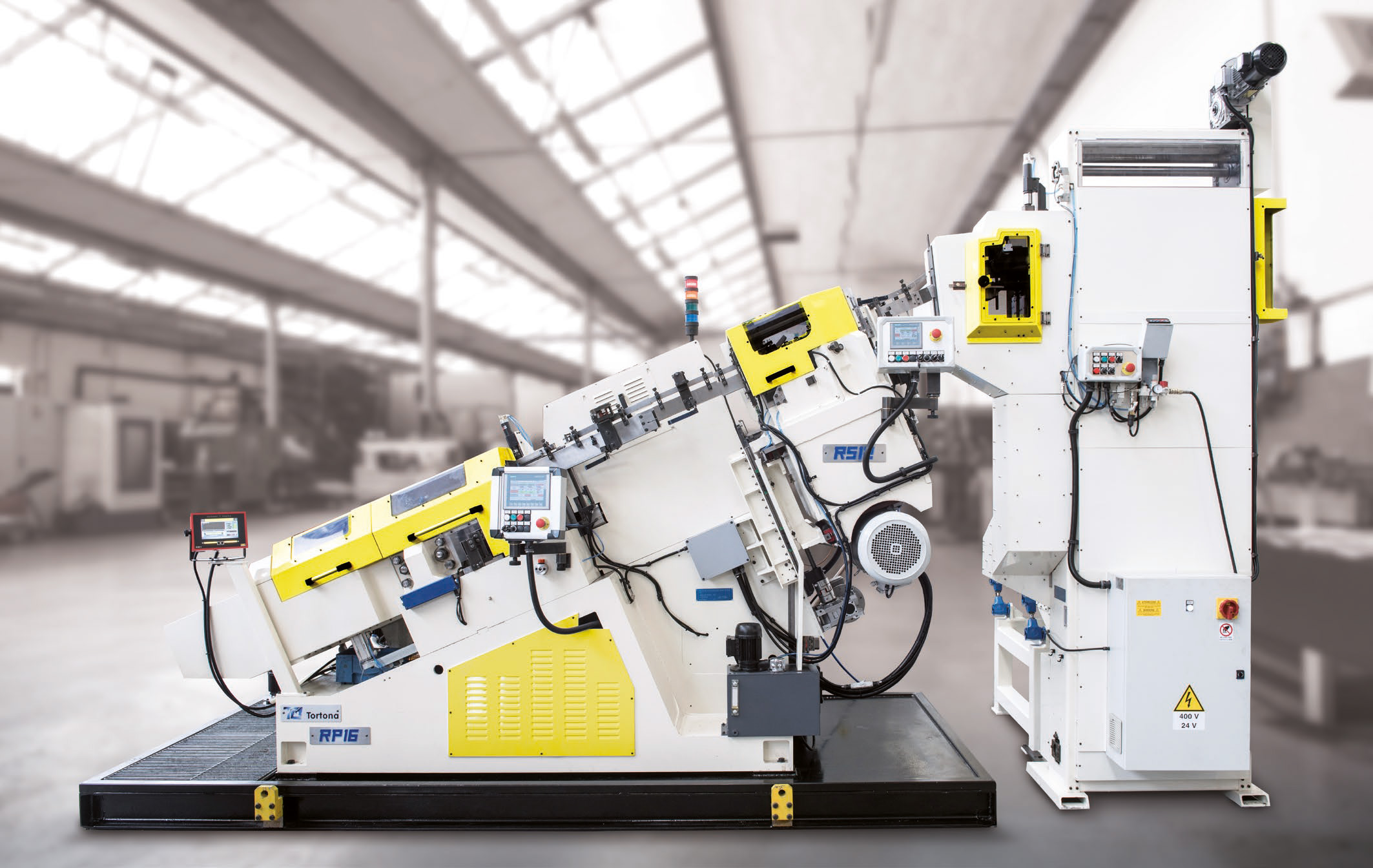

RP16S + RS12S + XL

RP16S + RS12S + XL

RP16S + RS12 + Loading Elevator

Technical features

Automatic thread roller with flat dies mod. RP16/S (without rivet magazine)

Technical characteristics: approximate values. The speed of the machine may vary according to the material used and the type of part to be rolled. Dimensions in mm.

Production of pieces per minute
min 60 ÷ max 135/140
Diameter of mechanical screws
min 8 ÷ max 14
Length of rollable thread
min 20 ÷ max 120
Max length under head with partial threading
280
Max length of non-threaded shank part
160
Dimensions of flat dies standard / raised
228,6x254x42,8 h120 / h130
Total power used
HP 28
Net weight of the machine
Kg. 7200



Automatic rolling machine roller and sectors mod. RS12/S special (module in combination with flat dies thread roller)

Technical characteristics: approximate values. The speed of the machine may vary according to the material used and the type of part to be rolled. Dimensions in mm.

Production of pieces per minute
min 200 ÷ max 1200
Diameter of rollable screws
min 5 ÷ max 12
Thread length
min 5 ÷ max 58
Spindle raised to allow the passage of long screws
--
Total power used
HP 15
Weight of the machine approx.
Kg. 2500

Machine as described above mounted on motorised shelf – to support it fitted with:
By-pass carriage mounted on roller blocks (linear guides) that allows the rotating machine assembly to be moved in the event of disuse, for the production of standard screws, and remote access for assistance via Internet/Ethernet plug.

View of guides ascent and descent positions:
• No. 1 view of guides ascent and descent of the flat die thread roller
• No. 2 views of RS combined roller (incoming and outgoing from itself)
• No. 1 view of elevator output guides

All visible on the operator panel with the addition of PLC expansion and software.
Total views: 4
