Flat dies machines for screws and special threads

Flat dies machines for screws and special threads

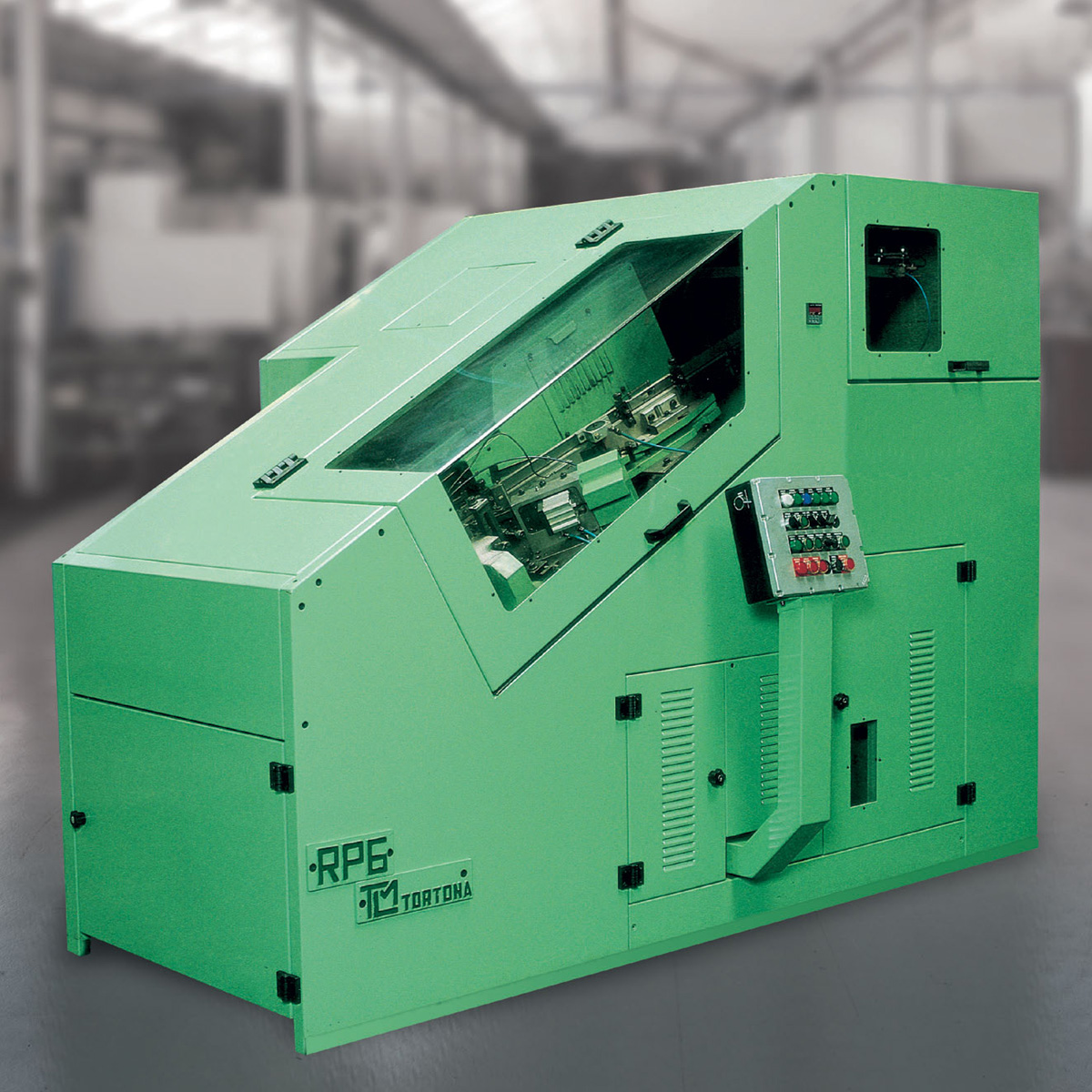

RP6

RP6

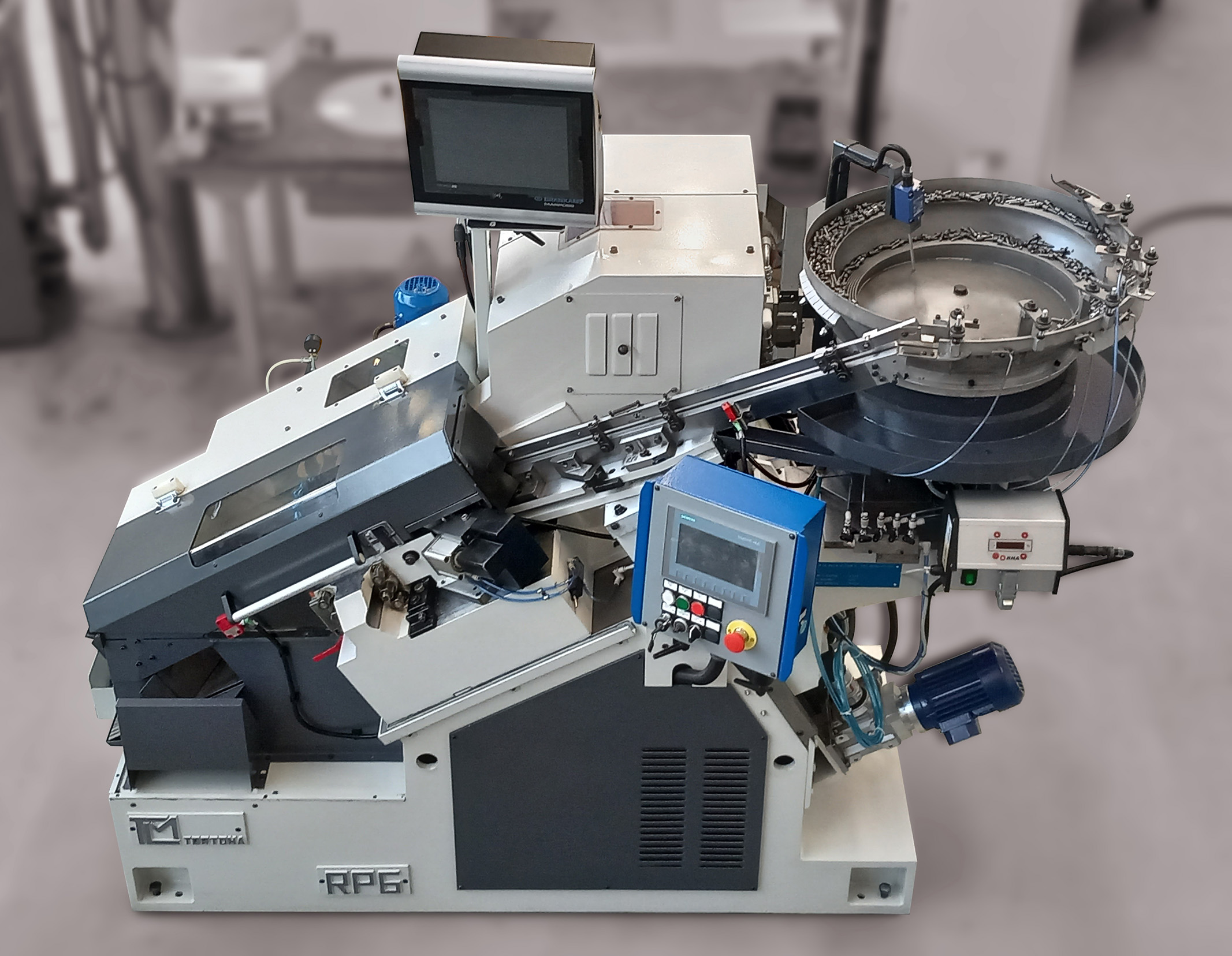

RP3 con lo strumento di controllo sforzo e l’uscita dei pezzi di scarto

1 punch machines

Single feeder machines have a feeder punch fixed to the punch holder, in turn installed on the single feeder runner whose kinematics and movement make the punch push and feed the screw between the combs for rolling. The feeder runner slides on crossed roller guides.

Technical features

Approximate values. The machine speed can change according to the material used and the type of item to be rolled. Measures in mm.

Output capacity
min 220 ÷ max 630
Screw diameter
min 2,5 ÷ max 6
Thread length
min 5 ÷ max 40
Max length of under head shank
90
Standard tool sizes
95x85x42 Sp.25
Total power of motors
HP 10
Approx net weight
Kg. 2100
Machine Sizes
2000x1200x1500
Machine sizes with hood for total soundproofing
A 1470 - B 2490 - H 1690
